The LMV822M/NOPB（购买请点击） bring performance andeconomy to low voltage / low power systems. With a 5 MHzunity-gain frequency and a guaranteed 1.4 V/μs slew rate,the quiescent current is only 220 μA/amplifier (2.7 V). Theyprovide rail-to-rail (R-to-R) output swing into heavy loads(600 W Guarantees). The input common-mode voltage rangeincludes ground, and the maximum inputLMV822M/NOPB（购买请点击） offset voltage is3.5mV (Guaranteed). They are also capable of comfortablydriving large capacitive loads (refer to the application notessection).
Features
(For Typical, 5 V Supply Values; Unless Otherwise Noted)；

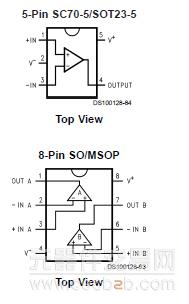

Ultra Tiny, SC70-5 Package 2.0 x 2.0 x 1.0 mm；
Guaranteed 2.5 V, 2.7 V and 5 V PerformanceLMV822M/NOPB（购买请点击） ；
Maximum VOS 3.5 mV (Guaranteed)；
VOS Temp. Drift 1 uV/° C；
GBW product @ 2.7 V 5 MHz；
ISupply @ 2.7 V 220 μA/AmplifierLMV822M/NOPB（购买请点击） ；
Minimum SR 1.4 V/us (Guaranteed)；
CMRR 90 dB；
PSRR 85 dB；
Rail-to-Rail (R-to-R) Output Swing；
— @600 W Load 160 mV from rail；
— @10 kW Load 55 mV from rail；
VCM @ 5 V -0.3 V to 4.3 VLMV822M/NOPB（购买请点击） ；
Stable with High Capacitive Loads (Refer to Application。
